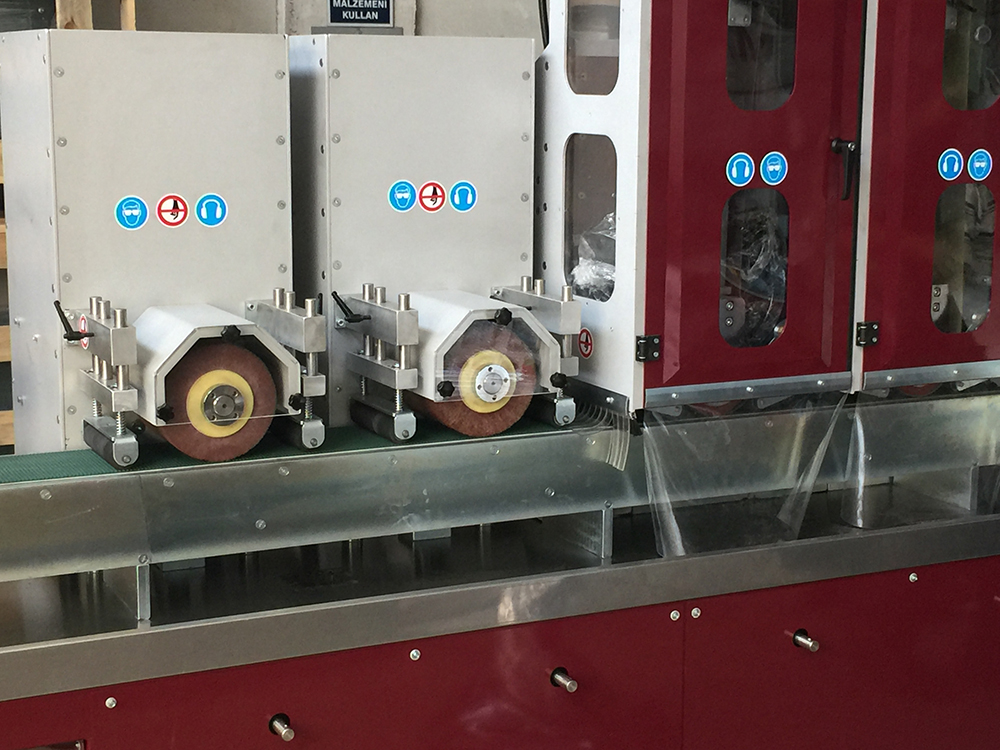

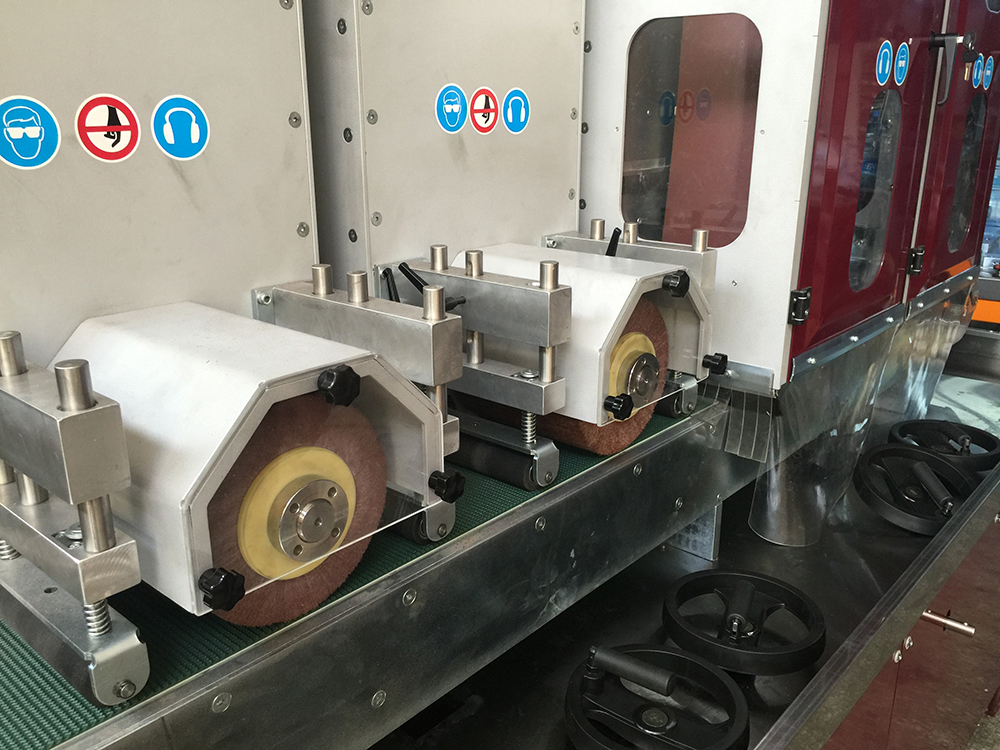

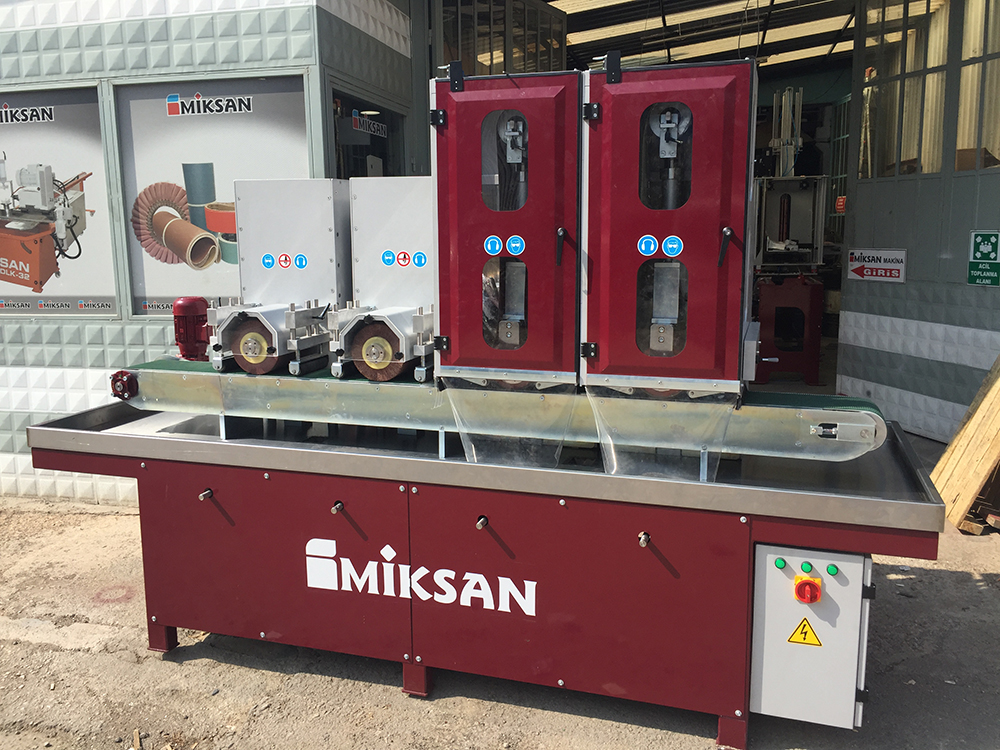

PRS-200X4, PRS400X4 SKOÇLU PROFİL & LAMA SATİNE MAKİNASI

PRS-200X4 PRS-400X4
Zımpara motoru
(Abrasive Power)
4 x 5.5 kw 2815 d/d (rpm) 380 v 50hz 4 x 7.5 kw 2815 d/d (rpm) 380 v 50hz
Konveyör bant motoru
(Conveyor Belt Power)
0.55 kw 1390 d/d (rpm) 380 v 50 hz 0.55 kw 1390 d/d (rpm) 380 v 50 hz
Su motoru
(Water Pump)
0.09 kw 2802 d/d (rpm) 380 v 50 hz 0.09 kw 2802 d/d (rpm) 380 v 50 hz
Zımpara ölçüsü
(Belt Dimensions)
2000 x 200 mm 2000 x 400 mm
Skoç Mop
(Scotch Mop)
200 x 200 mm 2 Adet (2 pcs) 200 x 400 mm 2 Adet (2 pcs)
İşleme kapasitesi (yükseklik)
(Working Capacity (height))
Min 2 mm max 105 mm Min 2 mm max 105 mm
İşleme kapasitesi (boy)
(Working Capacity (length))
Min 190 mm max 6000 mm Min 390 mm max 6000 mm
Soğutma
(Cooling)
Su (Water) Su (Water)
Ağırlık
(Weight)
1200 kg 1500 kg
Ebat
(Dimensions)
3000 x 800 x 2000 mm 3000 x 950 x 2000 mm
